CoboMover CMF

Linear axis for FANUC cobots

Constructed and optimized for the positioning/moving of cobots. For the construction of the linear axes, particular attention is paid to ensure:

• Clamping or pinch points were avoided as far as possible (ready for collaboration)
• Compact design for use in the most narrow of spaces, few interference contours
• Versatility in use: suitable fastening on welding table with 100 mm pitch
• Long service life and low maintenance effort

The CoboMover linear axis can be used to extend the range of a cobot. With the use of a seventh axis, this can extend its working range by up to five meters or increase a cobot capacity by allowing it to take on additional tasks or serve several workstations.

Technical data Downloads Contact

TYPE CMF PRODUCT OVERVIEW BY PAYLOAD

Positioning axis

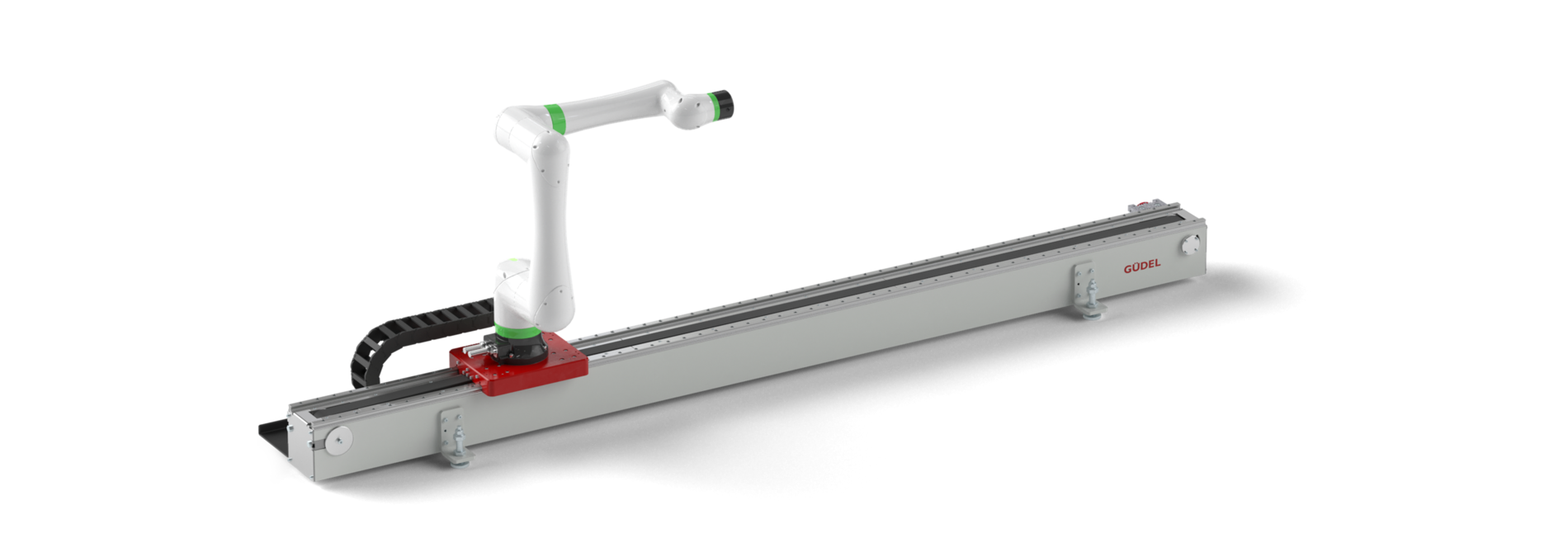

CoboMover CMF – To extend the working range of cobots

The Güdel CoboMover linear axis is used to extend the working range of a cobot up to 5 meters. This allows it to operate several workstations and take on additional tasks. The CoboMover, developed and built in Switzerland, performs reliable work in the areas of welding, machine loading and machine operation. Other possible applications include packaging and palletizing goods.

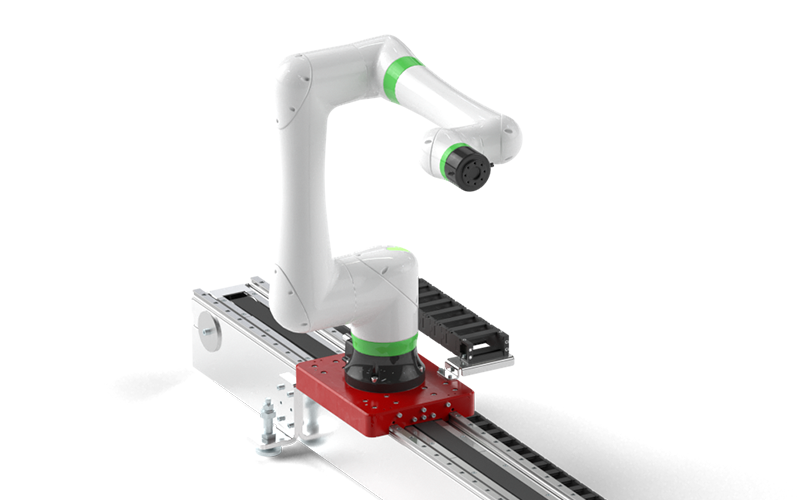

CMF compatibility with FANUC cobots

The CoboMover CMF is compatible with the following FANUC cobots

Typ CRX

• CRX-5iA

• CRX-10iA

• CRX-10iAL

• CRX-20iA/L

Linear Track Selection Tool

Find the right CoboMober for your FANUC cobot.

Downloads

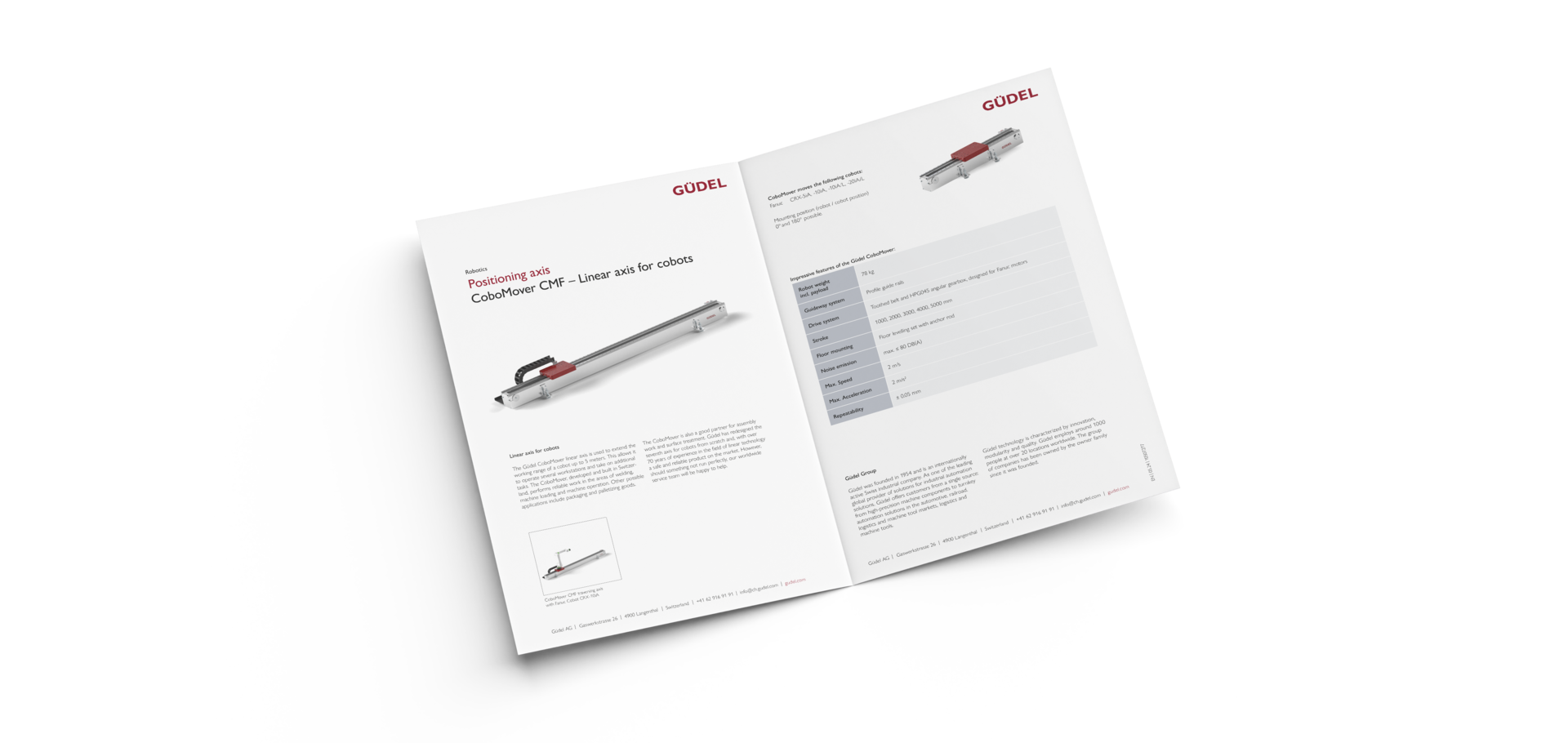

Factsheet CoboMover

Download our latest CoboMover factsheet (PDF).

Contact

We are pleased to answer your request

Salutation

Country

First Name

Last Name

Phone

Company

Job Title

Subject

Message

I hereby consent to the data, collected above, being processed in accordance with the Data Protection Declaration for the purpose of processing my contact request. This consent may be withdrawn at any time with future effect. *

* Required Field.

Get updates about the latest developments of our products, current news, information about events and the latest content on our website.

Güdel Newsletter

	Material	Description	Art. No.	Dim.	m
1	Alu	Laufwageneinheit kpl.		370 × 290 mm	15 kg *
2	PAG	Energiekette Y-Achse	2700.09.125.0	50 × 109 mm	1.2 kg/m
Last name		Anschlusselement	26001.09.12.C.A2

Axis	y
Stroke[mm]	s_y ≤ 1000, 2000, 3000, 4000, 5000
max. payload F[N]	830
*Speed[ m min ^-1]**	120
Acceleration[ms^-2]	2
Pitch of belt[mm]	8
N° of teeth of pinion[-]	48
*Gearbox ratio [-]**	8
*Size of Güdel gearbox type [-]**	HPG045
Stroke of axis per motor revolution[mm]	48
Acceleration time[s]	1.33
Stroke of axis while accelerating[m]	1.33
Type of belt[-]	RPP
Width of belt[mm]	50
*Motor speed [min-1]**	6000
*Stall torque of motor [Nm]**	90
*Max. torque of motor [Nm]**	120
	Cobot
